Aqueous Technologies Trident III Cleaning System

The Trident III system can be used for many applications: Clean SMT Assembled Boards, Printed Circuit Boards, CNC Machined Parts, Automotive Parts and Semiconductor Applications.

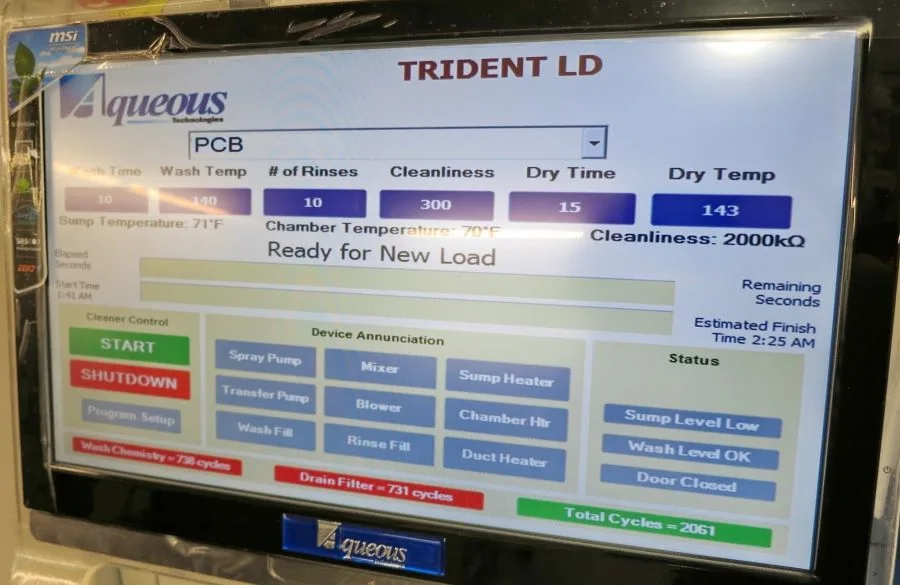

The Operator interface is logically arranged for easy interaction Graphic-Based Real Time Displays allows operator to easily Interpret the status of the cleaning process. Programming the machine takes less than a minute. During the machine's cycle all VITAL Info is on Display: Machine Components, Cycle Display & Status, Estimated time of Completion, Program Number, Temperature, Resistivity (Cleanliness of the De-Ionized Water) Level and other important info are displayed in Real Time.

SKU 16561 : For pricing or questions please call or email us

• Environmentally Responsible Fully Automated Cleaning System
• Optional Zero Discharge *

Closed-loop Wash *

DI Water Configuration *

(* Not included, additional cost applicable)

• Heated Tank
• Filtered Rinse Drain
• Batch Cleaner for all Types of Substrates: PCBs, CNC Parts, Ceramics, Mix SMT BGA PTH Assemblies etc..
• Windows Networkable
• Windows CE Computer Control
• Large Graphic Touch-Screen 10.4” (264mm) Interface
• Chemical Management System
• Automatic Chemical Injection System
• Automatically Adds a Programmable Volume of Defluxing Chemical to Wash Water
• Capable of removing All Flux Residues:
• No Clean Flux Removal
• Rosin Flux Removal
• Water Soluble Flux Removal
• Award Winning Focus-Wash Technology
• Built-in Cleanliness Testing
• Lead & Lead-Free Compatible
• Pre-Drain Filtration System
• Fastest Cycle Time in Class
• Powerful Heated Drying System
• SPC Data Logging with On-Screen Viewing
• SPC Data USB Export & Remote Viewing
• Password Protected Functions
• Programmable Maintenance Reminders
• Adjustable ESD Safe Board Rack
• Wash Solution Level Gauges
• Front Access Maintenance Bays
• Segregated Spray & Drain Pumps
• Dimensions: 34” D x 44” W x 71” H
• Weight: 800 lbs (362.87 kg)
• Power: 208-240 VAC
• ESD Ground Point
• Lead Time to prepare machine: 4wks
• All work done on site & FOB: Hillsboro Oregon

Note: DI Water Configuration require External cylinders & may have monthly rental applicable (you will select the company for tank rental that is closest to your location) *
