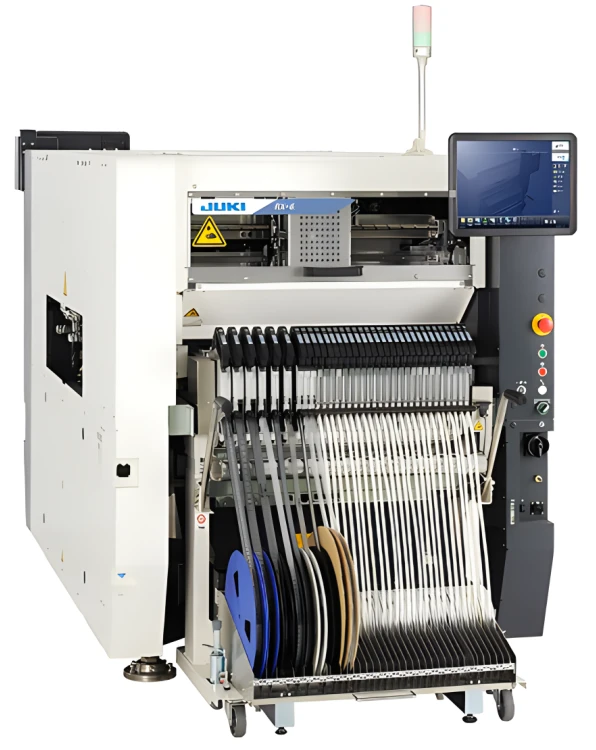

JUKI RX-6 High-Speed SMT Pick-and-Place Machine

The JUKI RX-6 is a high-speed compact modular pick-and-place machine designed for precision electronic component placement in SMT production lines.

SKU #: 16574

Machine Specifications and Features

• High-Speed Compact Modular Mounter for Both Small and Large Production Volumes
• Handles PCBs 35.63 x 23.23 inches (905 × 590 mm) to smallest 1.97 × 1.97 inches (50 × 50 mm)
• Compact Design Width of ONLY 49.21 inches
• Speed Component Placement of up to 42,000 CPH (optimum)
• Two Placement Heads (1 at the front and 1 at the back)
• Equipped with both a Laser System and an Optical System
• Additional Exceptional Features:
• – Embedded Process Verification
• – Component Verification System
• – Offset Placement After Solder Screen-printing
• Process Components from 0402 (01005) up to 1.97 x 1.97 inches (50 × 50 mm)
• Supports Larger range of components:
• – 0402 (01005) chips with plugs up to sizes of 3.94 x 3.94 inches (100 × 100 mm)
• – or 1.97 x 7.09 inches (50 × 180 mm)
• Maximum Component Height 1.30 inches (33 mm)
• Placement Accuracy ± 0.0016 inches (± 0.04 mm) (Cpk = 1)
• Component Loading Quantity Maximum 160, 8 mm Electric Double Tape Feeder
