Mydata Mycronic TP9-2

SKU 16539: For pricing or questions please call or email us

• This machine has been & will be Checked / Tested before shipment & Fully Functions
• Easy-to-Use , Cost Effective Solution , Fast ChangeOvers
• Mydata/Mycronic's Linux Based System Software Provides Multi-User, Multi-Tasking & Multi-Board Production Features
• TPSys 2.3.3

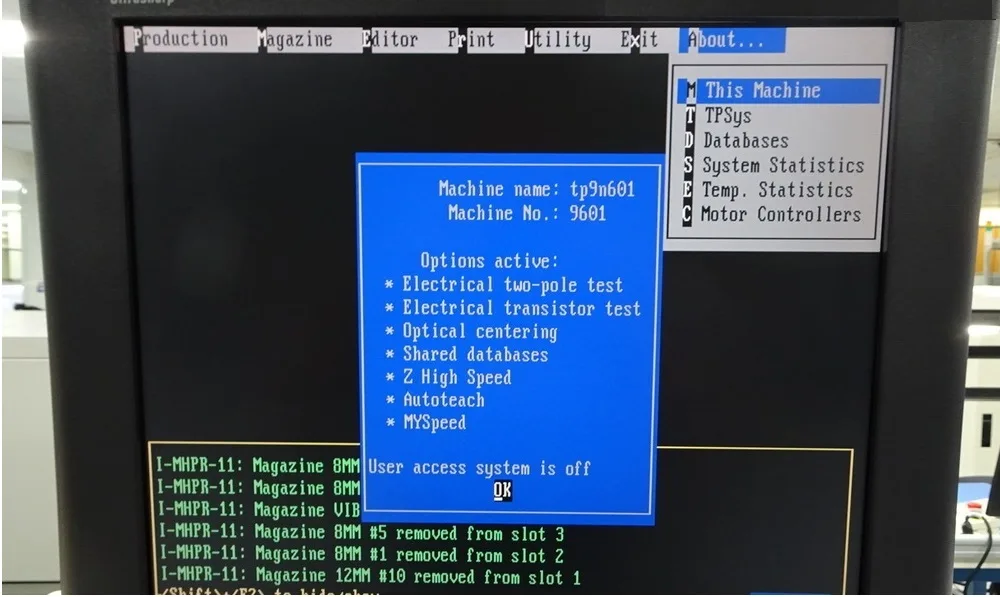

• Electrical two-pole test
• Electrical transistor test
• Optical centering
• Shared databases
• Z High Speed
• Autoteach
• MYSpeed
• Qty 1, set of Y wagon magnets to hold IC Tray
• Qty 5-6, Y wagon magnetic board holders
• Placement Speed 4,800 CPH
• Tact Time 0.75 Sec
• Automatic board & component detection
• Fiducials supported with auto teach of any pattern
• Manual or conveyorized board handling
• Board dims:

Max: 19.6 x 22.2 inches ( 498 x 564 mm)

Min: 0.7 x 0.7 inches (19 x 19 mm)

• Board Thickness Less than 0.04 inches (1 mm), max width 5.91 inches (150 mm)
• Programming:

Converted CAD File Download

Manual Entry X, Y, Z

Vision Teach Mode with Graphical Overlay

• Programmable Placement Force
• Mydata/Mycronic Communication Solution MCS is a Fully Automated Process for Building a PCB from CAD Drawing to Assembly
• Mydata/Mycronic Network & Integrating with the existing network at your Production Plant
• Electrical Verification " On-The-Fly "
• Vision Capability:

256 Shades Gray Scale

512 x 512 pixels Camera Resolution

• Mydata/Mycronic Fiducial Vision System Aligns Each PCB Using ANY Type of Reference Mark
• Max Component Size: 1.5 x 1.5 inches (39 x39 mm), min pitch 0.4 mm (15mil), min lead width 0.2mm (8mil)
• Each Magazine Feeder:

Specially recognized by the System Software

Enables the Right Components to be Picked wherever the Magazines are inserted

Pick Positions Never have to be Re-programmed

Machine Always Recognizes its Presence, Absence & Location of Components, Reducing Setup & Changeover times

Can Hold 112, 8mm Tapes or 105 SOIC Tubes

• Power: Single Phase 110V
• No Air required
