Overview
SMT Inverter Conveyor, Flipper Conveyor for Double Sided Assembly

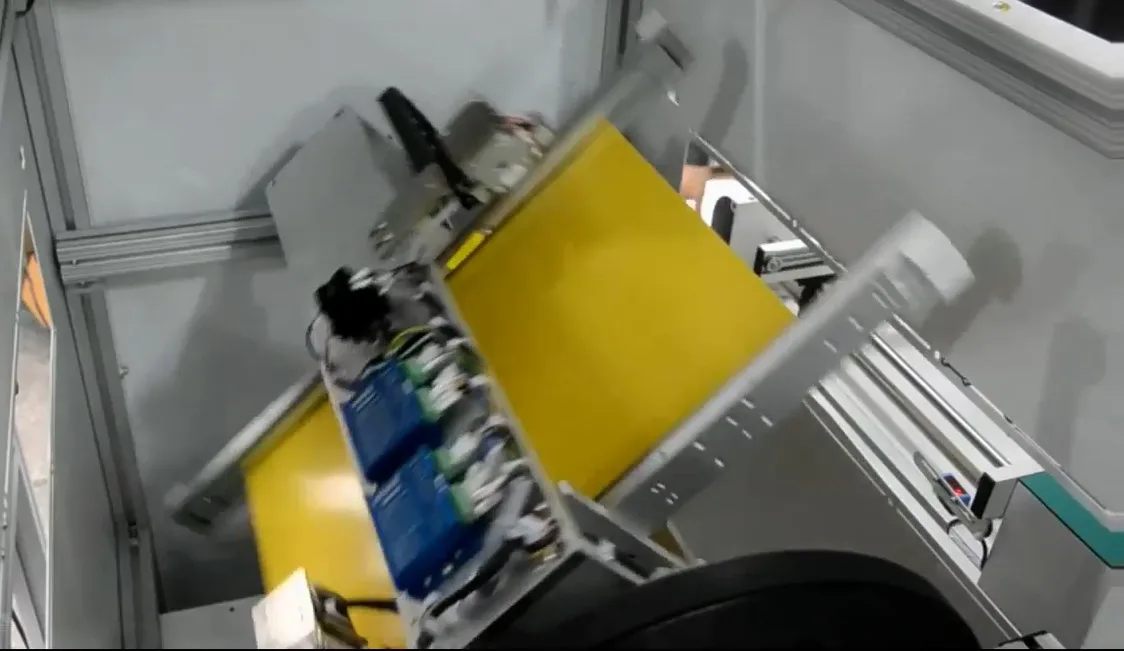

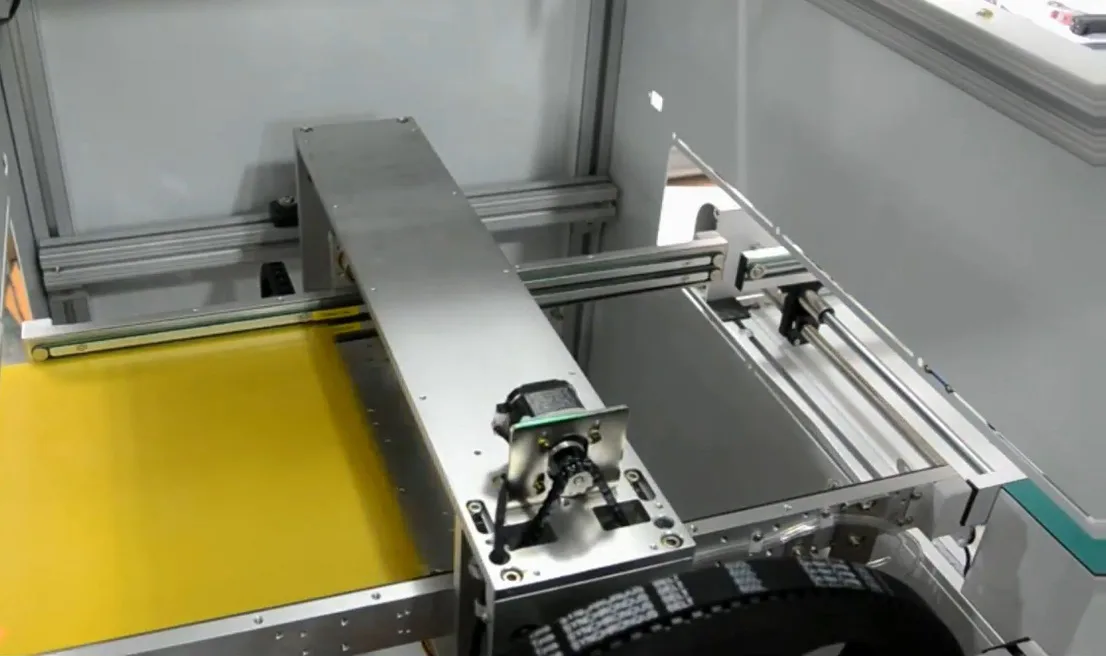

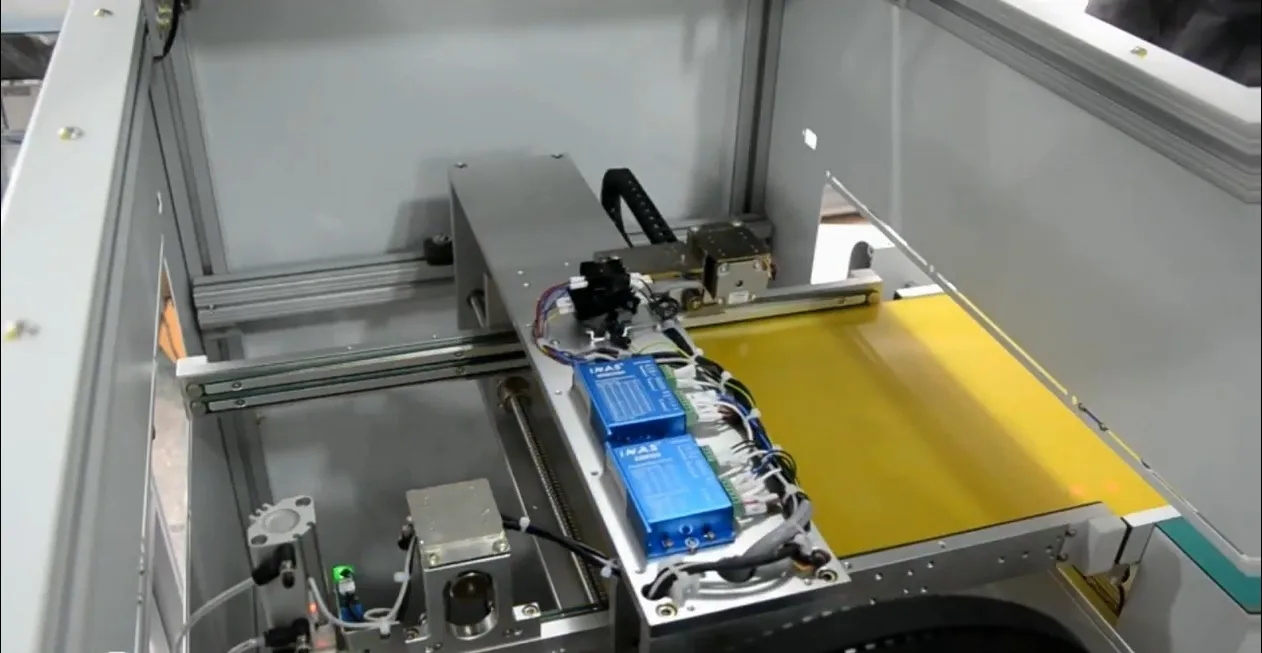

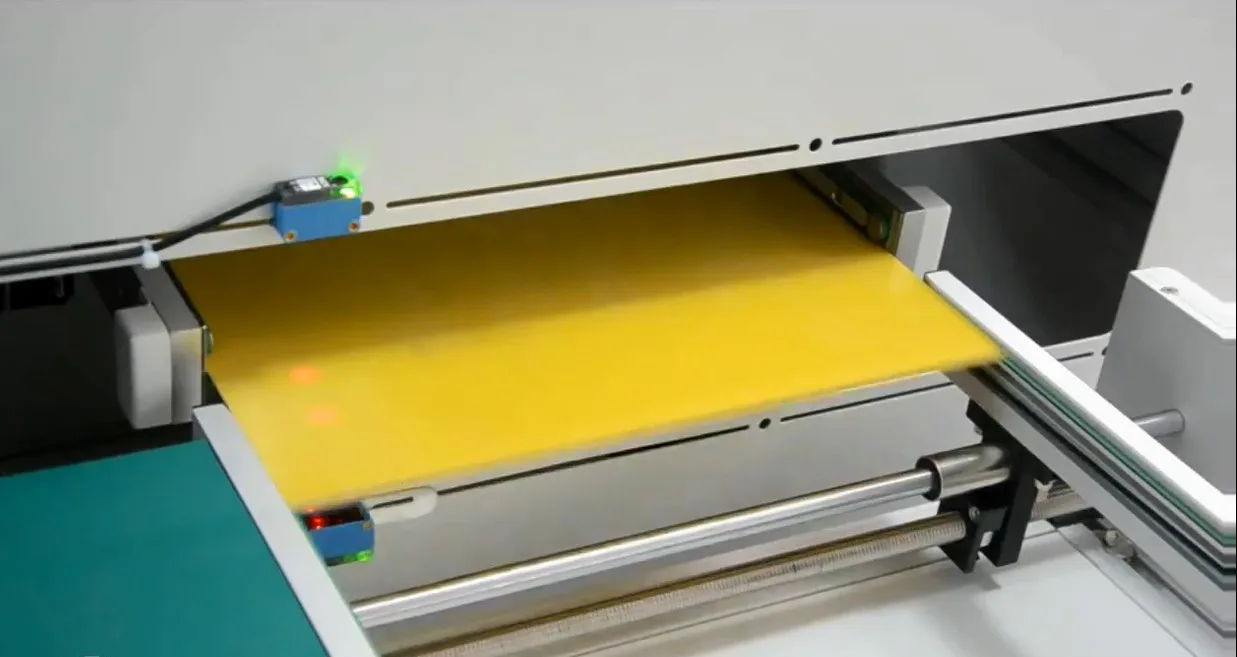

This system is designed to invert and flip PCBs 180 degrees for double-sided assembly
Sku 10439: For pricing or questions please call or email us
- Programmable Touch Screen Auto Width Adjustment
- CE Certified
- By-pass mode selectable.
- Pneumatic stopper to keep PCB in position during inverting
- Smooth and parallel width adjustment.(lead screw)
PCB Length: 1.97 – 20 inches (50mm-510mm)
PCB Width: 1.97” – 20.86 inches (50mm-530mm)
- SMEMA Compatible and Smema Cables Included
- Transport height: 37.40 inches ±1.18 / 950mm ±30mm
- Transport Left to Right
- ESD flat belt
- Belt Speed: 0.5-20m/min adjustable
- PCB edge support: 0.12 inches (3mm)
- Cycle time: ± 8 seconds
- 2year Parts Warranty
- SMEMA Compatible and Smema Cables Included
- Lead Time 35days
Technical Specifications
| Conveyor Height | 35 +/- 0.79” ( 900 +/-20mm) |
|---|
Power / Facility Requirements
Facility power and air requirements are confirmed at quotation.
Dimensions
Machine footprint and crated dimensions supplied on request.
Shipping & Rigging
We arrange domestic and international shipping, crating and rigging.
Videos
A machine video walkthrough can be recorded on request.
Downloads
Specification sheets, brochures and manuals appear here when available.
