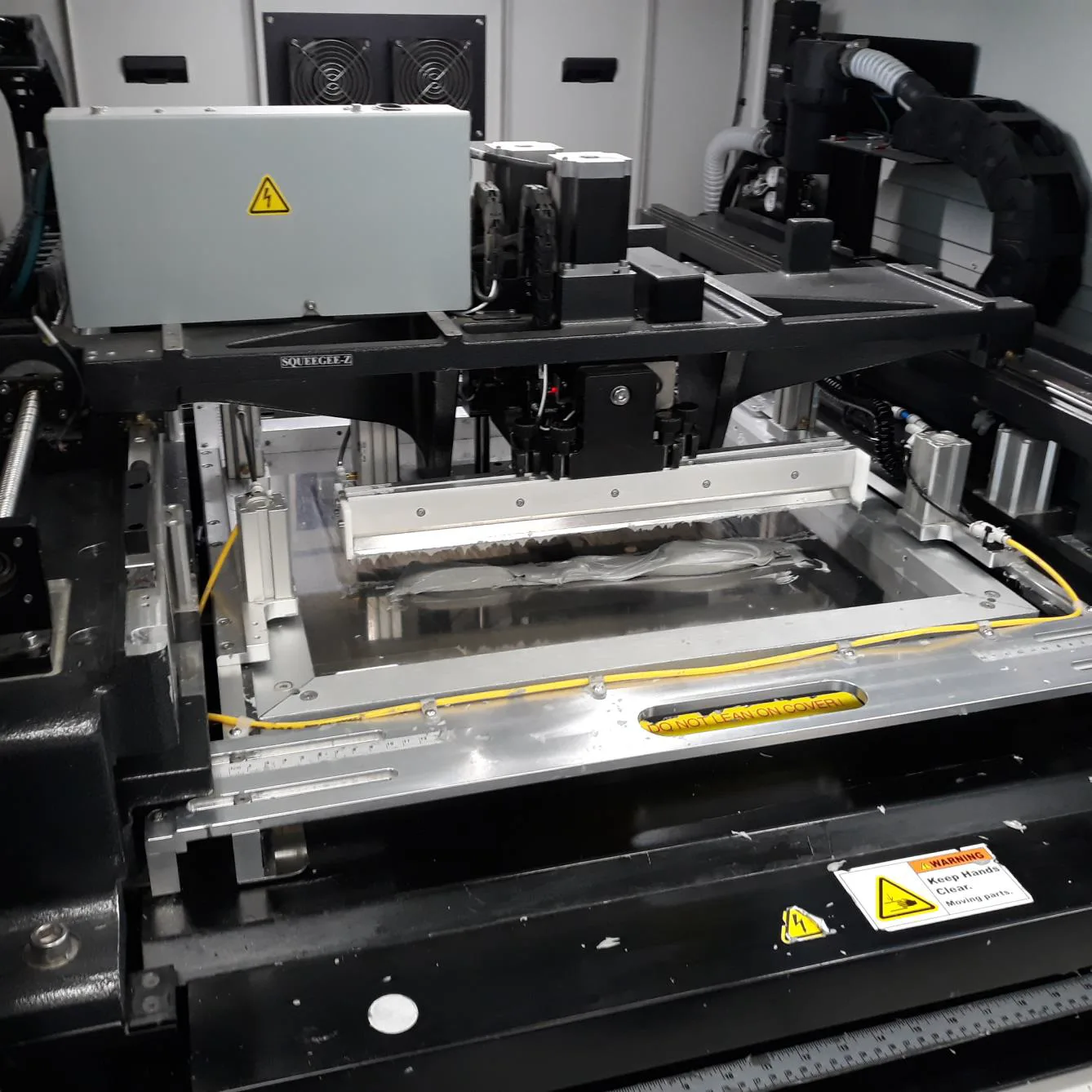

MPM Momentum Series HiE System is a proven high-performance printing platform - flexible, configurable, and easy to use, with speed and accuracy. The Hi E is faster than the base Momentum or Momentum + . This is a proven high-performance printing platform - flexible, configurable, and easy to use, with speed and accuracy

SKU 16523 : For pricing or questions please call or email us

• System will be Checked - Tested & production ready
• OPTIONS Included:
• Vision Probe
• Enhanced FOV
• Premium Inspect
• Paste Height Monitor
• Adjustable 650-508 mm Wide / 25.59-20 inches
• Large PCB Capability: 24 x 20 inches / 609.6 mm x 508 mm *
• Set of 3 Vacuum Board Support
• Camalot Inside:

- consists of two dispense pumps integrated into one printing machine

- provides ultimate flexibility, allowing the dispensing of two different

materials, or the same material (doubling dispense throughput speed)

• Dispensing Needles Not included

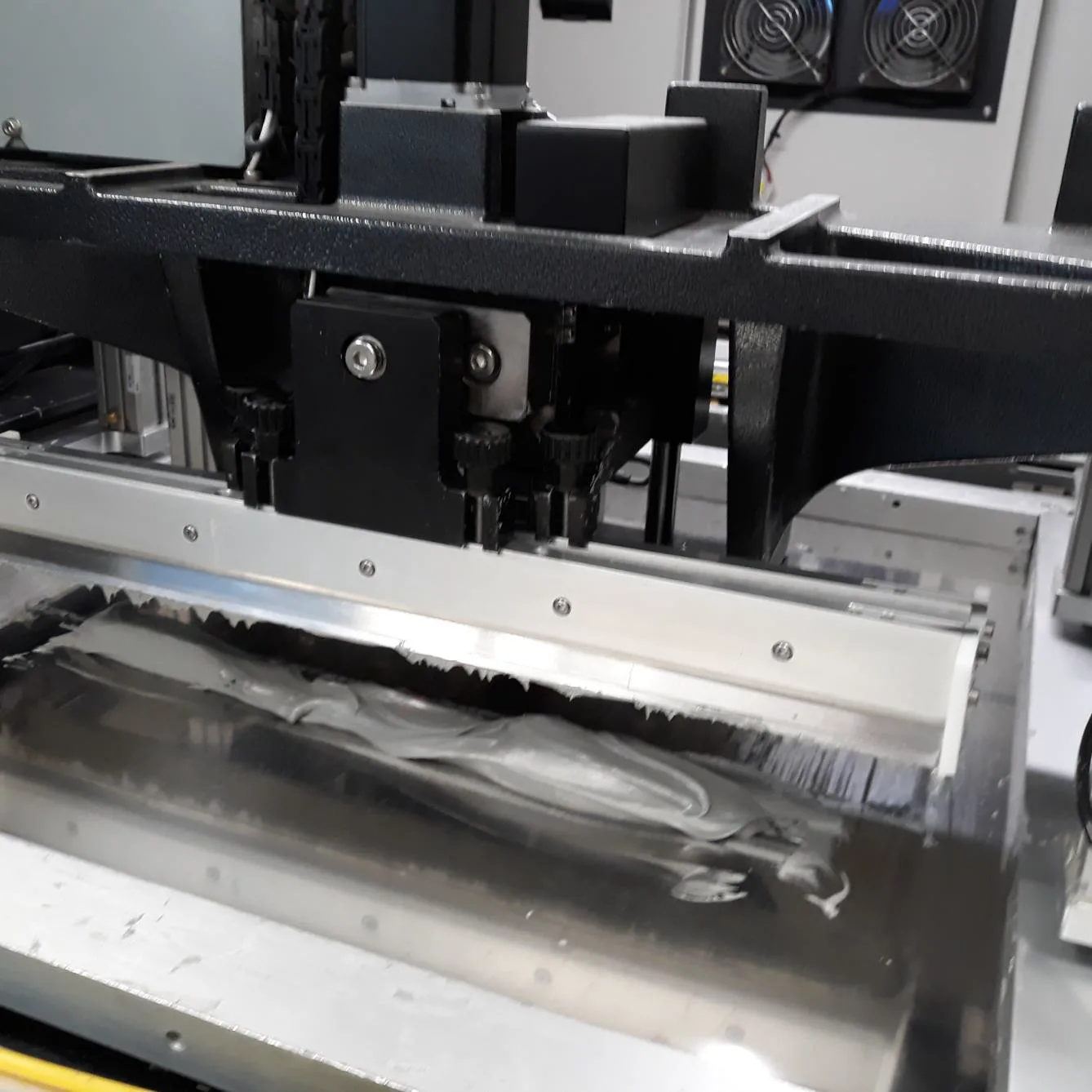

• Squeegees Not included
• Hi-E (High Efficiency):
• single-rail printer with servo motors driving the vision system’s X, Y, and Z axes
• servos drive the vision gantry at higher speed = increased throughput and cut cycle time
• The Hi E is faster than the base Momentum or Momentum+
• Tighter performance tolerances mean higher repeatability with fewer defects:
• Alignment repeatability is +/-12.5 microns @ 6 sigma, Cpk >2
• Accuracy and Repeatability (±0.0005") at 6 sigma,
• 6 sigma capability is designed in and independently verified
• Wet print accuracy is 20 microns @ 6 sigma, Cpk > 2
• 7.5 seconds Cycle Time
• Maximum Board Size: Special Large PCB Capability: 24 x 20 inches / 609.6 mm x 508 mm *
• Minimum Board Size (X x Y) 2” x 2” / 50.8 mm x 50.8 mm
• Board Thickness 0.2mm (0.008") to 5.0mm
• Board Edge Clearance 3.0 mm (0.118")
• Camera System Single digital camera - MPM patented look up/down vision
• 2D inspection

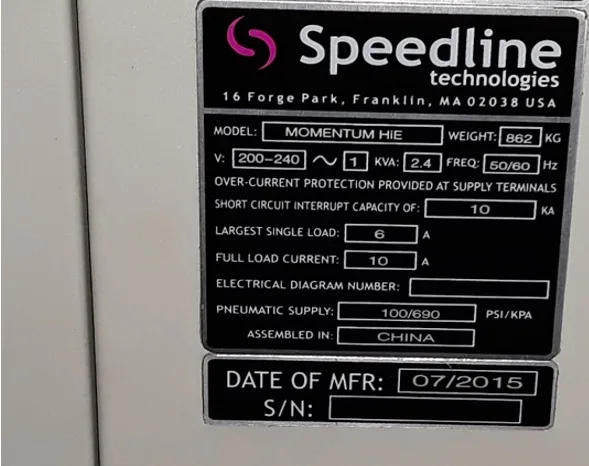

• Power 200-240V, single Phase, 50/60 Hz
• Over Current Protection
• Air Supply: 100 psi
• Dims L x W x H: 3.95 x 5.23 x 5.37 Feet / 1203 x 1593 x 1638 mm
• Machine Weight : 1900 lbs / 862 kgs
• Lead time to prepare: 3-4wks
• Fob: Hillsboro, OR

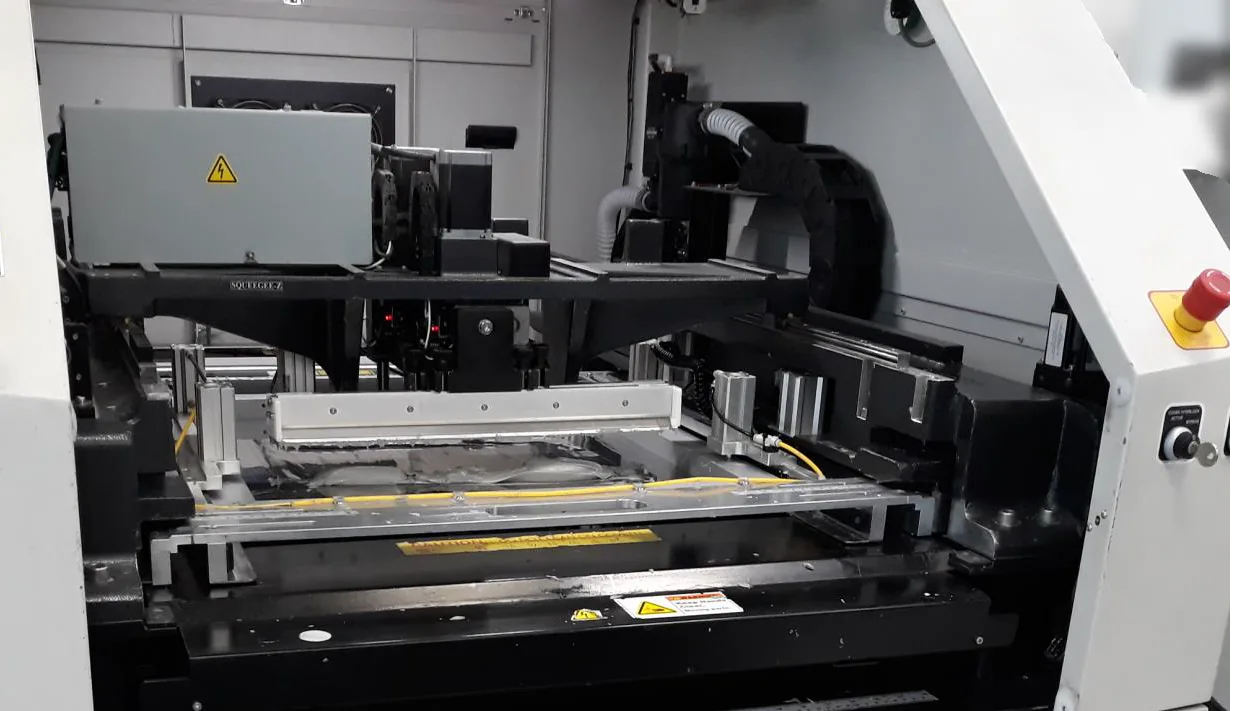

• A dedicated workholder is required for boards with an X size greater than 20” (not included, but can be made additional cost applicable)
