Universal Board Support System:
Can be used with Stencil Printers: MPM, Dek, ASM, Speedline, ITW EAE, Ekra, Panasonic, Yamaha, Speedprint
Controller and Operator Interface Sold Separately for each specific printer

& Add'tl Cost Varies depending on specific Mfgr & Model (Serial # needed)

DEK Form-Flex Tooling
DEK MK2 FormFlex Tooling
18 inches length of Board Support
44 Individual Pneumatic Tooling Pins per board support
Total 6 Universal Magnetic Board Supports
ESD protective tips have compliant flange to prevent damage to delicate components
Self forming pneumatically driven pin matrix:
Variations in the board layout is accommodated as the single pin pressure is small

enough to vary the height of the supporting pin without damaging the component

Conforms to any given board
Fully supports the underside of a populated board and stencil
Form-Flex tooling consists of Pin Modules with pin up/down control and each module contains 44 pins in two rows
High grade, polished stainless steel support pins for longevity
Support pin locking mechanism is isolated from pin shafts to prevent lubricants from contaminating pins and eliminates sticking pins
Each Form-Flex array is held magnetically to your manual tooling plate
At product changeover the Form-Flex pins are positively retracted and reset

INCLUDES:

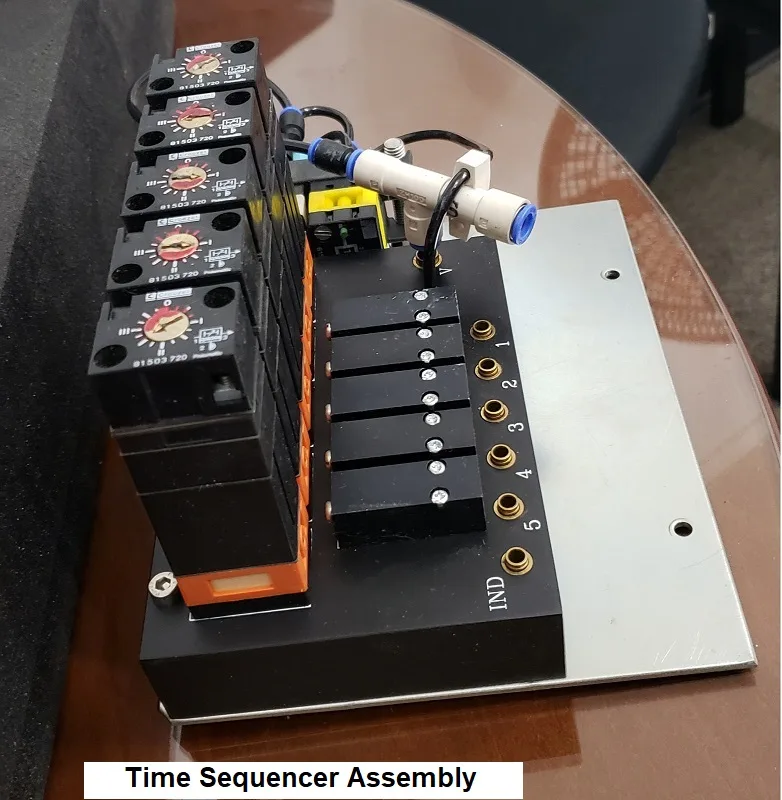

(1) Time Sequencer Assembly

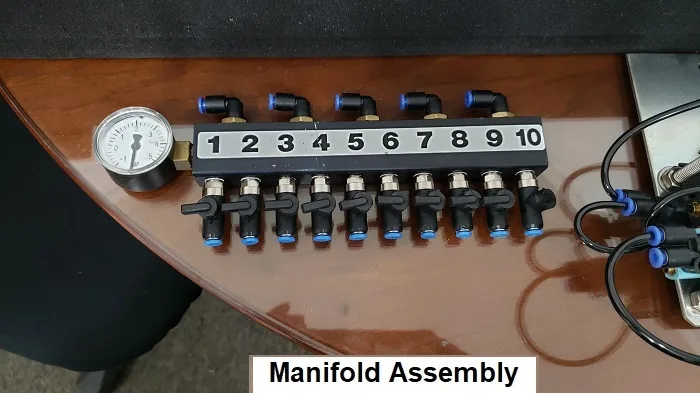

(1) Manifold Assembly

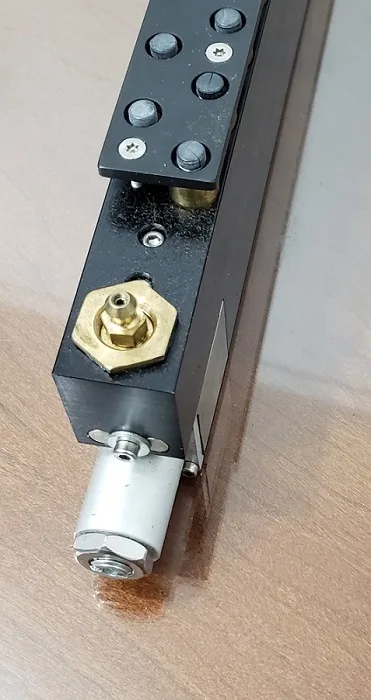

(6) Tooling Modules

Additional Items Needed & Sold Separately:

(1) Controller

(1) Operator Interface

Will need: Mfgr, Model & Serial #

Not Included:

Tubing
