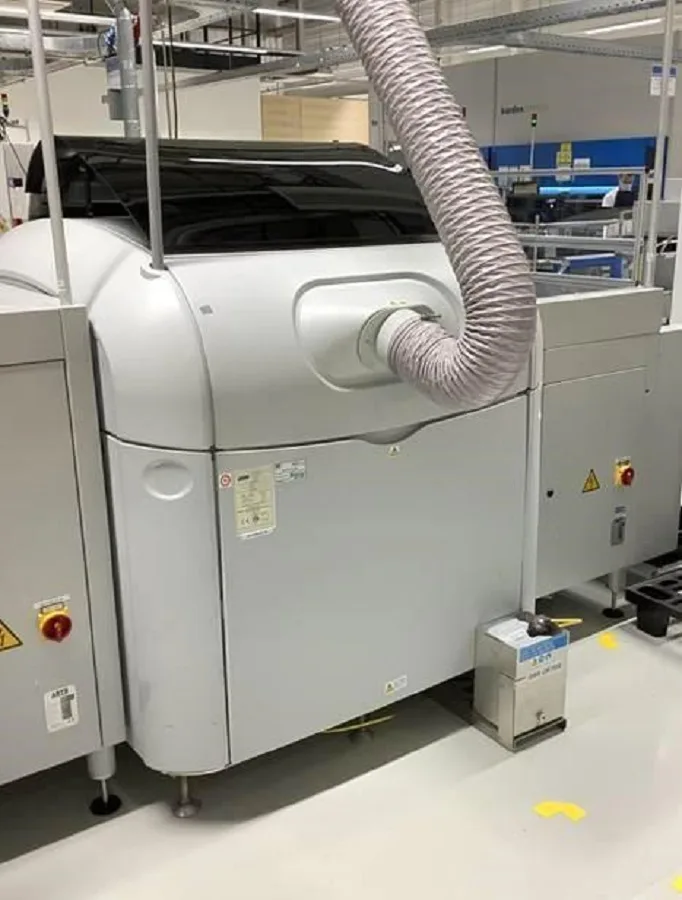

DEK Horizon 02iX Screen Printer for sale, Hawkeye Camera

SKU 16533 : For pricing or questions please call or email us

• ****************************************************************************
• * Great Options on this system * Open to All Serious Offers *
• Highly Recommend to Move on this QUICKLY *
• ****************************************************************************
• * Deposit Verification License
• HawkEye® 2Di / full 2D Inspection combines DEK's Verification and Inspection Technologies
• Delivers all the Benefits of 100% Paste-On-Pad Control at the Line-Beat Rate.
• Inspects Print Quality on Determined Areas of Boards or Stencils
• Allows Operators to both Identify when a Stencil Clean or Paste Dispense is Required and

Prevent Costly Defects

• HawkEye Compares Results with the "User-Defined" Limits of Acceptability
• HawkEye indicates whether the board is ready to pass through to component placement

or other downstream processing.

• * Hawkeye High and Ultra High Speed Camera Options running at a Maximum 1700mm²/second
• * Verification speeds based on 250 micron stencil apertures
• * Verification and Traceability
• * Hawkeye 1700 Camera
• * HawkEye 1700 vision window = 11.3mm x 8.7mm
• Dek "The most accurate results are obtained using printing machines fitted with the 1700 camera"
• * Dek's Top of the line CYCLONE Underside Oscillating Cleaning System
• * Adjustable Stencil Mount - Handles ANY SIZE Frame, NO ADAPTER NEEDED! (Removable)
• * Grid lok Tooling Compliant for Substrate Support
• * Temperature Control Module Already Built into the machine
• Accuracy and Repeatability 1.6 Cpk @ +/- 25 m
• Yr: 2011
• Maximum Board Size 20 x 20 inches / 508mm x 508mm
• Min Board Size: 1.97 x 1.57 inches / 50 x 40 mm
• Cycle Core Time 12 Seconds
• Operating System: Windows XP
• On board, reported via operator interface (QC-CALC)
• Machine will come to you Fully Functional and Tested
• 15-20days to prepare for customer
