Bi-Level Tilt Conveyor, BT18XL

Sku #10910: For questions, additional details and pricing please call or email us!

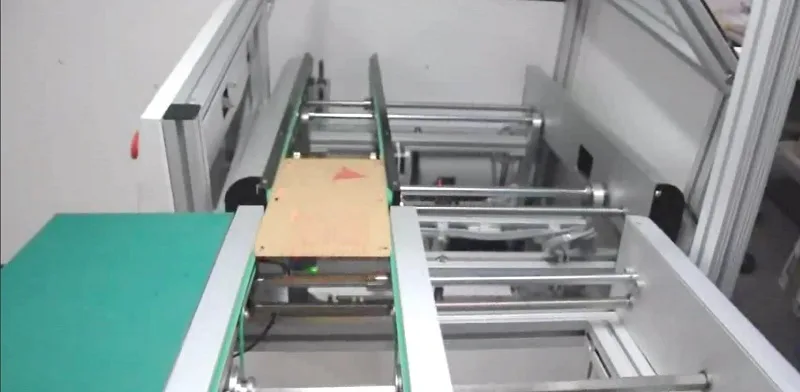

This conveyor provides flexibility between SMT production line and SMT through-hole production line with different conveyor heights for printed circuit boards PCBs or pallets.

View Video (Please note the video is with Esd Belts, Roller Chain option is available)

• CE Certified
• Tilt: 3 to 7 degrees
• User friendly “touch screen” control panel
• Touch Screen Speed Control Settings
• Touch Screen Tilt Angle Range Settings
• PCB precise stopping in position
• Roller chain or ESD Conveyor Belt
• Belt Speed: 0.5-20m/min adjustable
• PCB Edge Support: 3mm
• Lifting distance: 0-120mm adjustable
• Heavy bottom design to prevent shifting
• Smooth and parallel width adjustment
• Cylinder stopper at entrance and exit
• PCB length: 3.93 - 20.87 inches / 100 - 530 mm
• PCB width: 3.14 - 18.11 inches/ 80 - 460 mm
• PCB Thickness: 0.8 - 4.0mm
• Machine Dimensions (L x W x H): 37.40 x 38.58 x 57.09 inches / 950 x 980 x 1450 mm
• SMEMA compatible
• Lead Time 48 Working Days
• FOB: Hillsboro OR
• Call or Email for details and price. Thank you!
