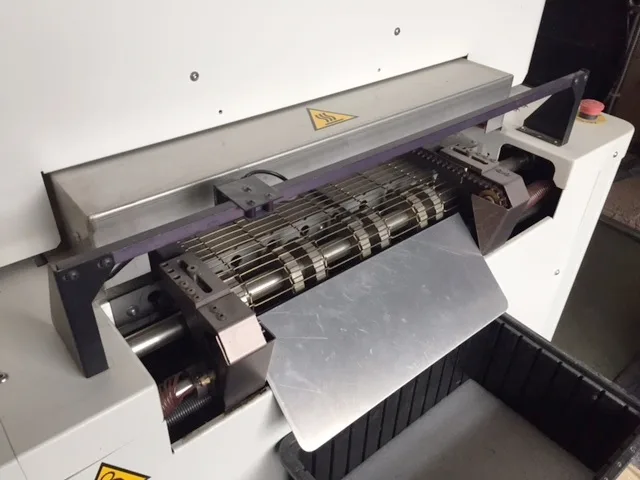

Vitronics Soltec XPM2-series Reflow Soldering System: It's unique Heat Cell Design the High mass quick response aluminum heater is Vitronics cornerstone Technololgy acts as a thermal reservoir. Vitronics Soltec's Flux Flow Control™ controls flux vapors, PCB outgassing, and airborne contaminants is effectively managed and removed.

SKU 16534 : For pricing or questions please call or email us

• Pristine - Low Hours ! - Minimal Usage !
• Process Length 13.55 x 5.35 feet ( 413 / 163 cm )
• Heat Zones 7 Top / 7 Bottom
• Heating - Tunnel Length 7.68 x 3.02 feet ( 234 / 92 cm)
• Heating power per zone @ 400V 8 kW
• Side-to-Side cell re-circulation (maximizes zone definition)
• Heating time from ambient to typical process temperatures <30 minutes
• 3 Cooling Zones
• Temperature measurement in each vertical cooling zone
• Side-to-Side cell re-circulation (maximizes zone definition)
• 350 degrees Celsius Maximum Operating Temperature
• Temperature control accuracy +/- 1°C
• Over-temperature safety protection in each heating cell
• 20 inch Belt Conveyor (19 inches / 483mm Usable Width and 0.5 inches / 12.5mm Pitch
• Heavy Duty Frame
• Ambient AIR Cooling
• Flux Flox Control TM / Flux evacuation system
• Oven Control Software (menu driven, closed-loop temperature control, closed-loop conveyor speed control data logging, recipe storage, auto start/stop, multilevel passwords, English)
• Host Interface Software (external communication software)
• Profiling Software (no OEM hardware required, use of Precision Profiling)
• Powered Hood Lifts (electro-mechanical)
• Over-Temperature Safety System (bi-metalic sensors)
• Individual zone exhaust™ (patented)
• Exhaust Sensing System
• Integrated Exhaust Stack Filter (filters exhaust with filter clog detection, according to GS 295)
